Steps to integrate instamojo payment gateway with Zoho books

Steps to integrate instamojo payment gateway with Zoho books:

Step 1: Log in to the ZOHO BOOKS account.

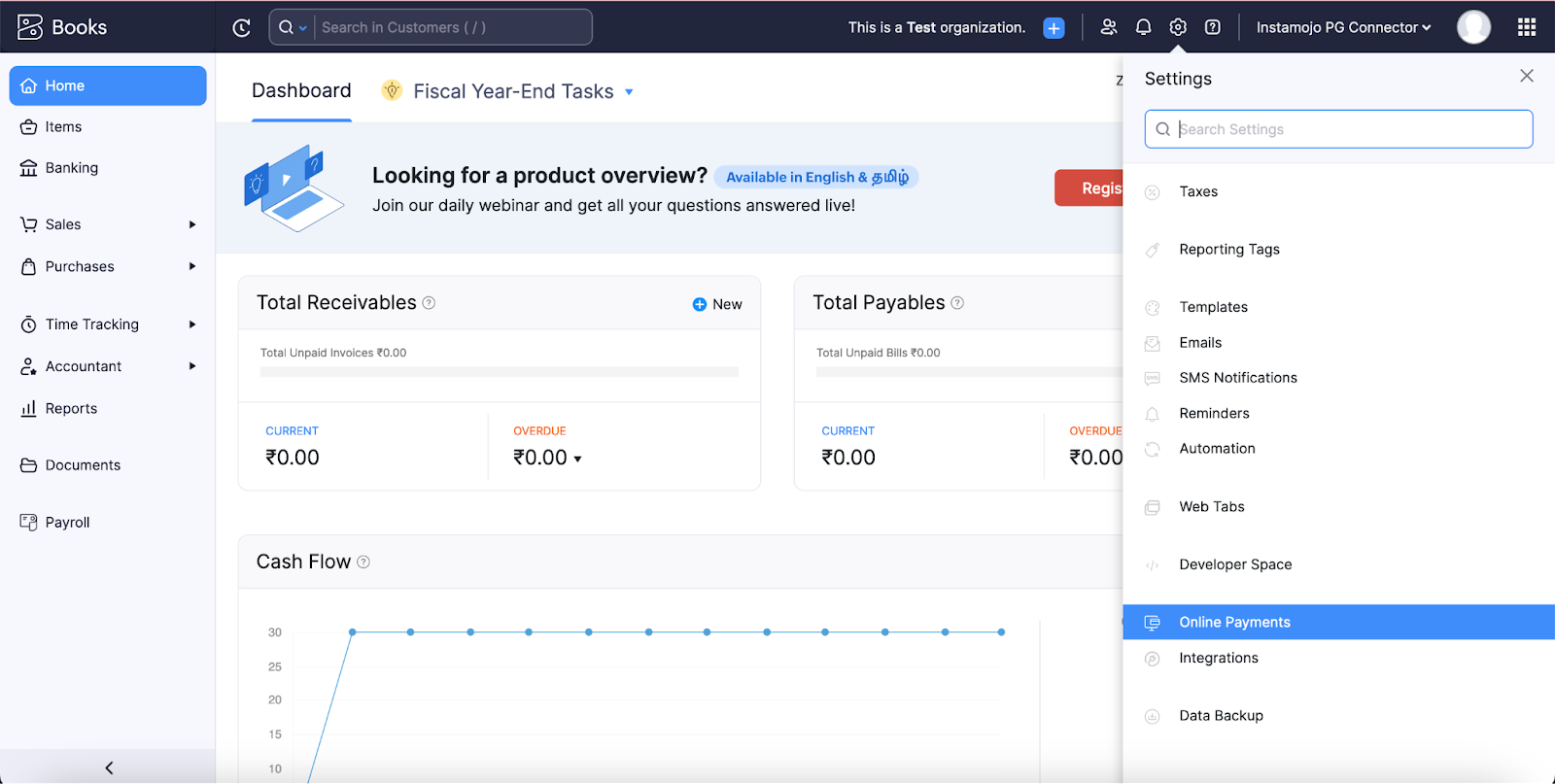

Step 2: Click on the settings icon & select the online payments option ( Check below screenshot )

Step 3: Click on Instamojo’s box Set up Now button

Step 4: Copy the client id & secret keys from the Instamojo dashboard. Click here to collect keys.

Step 5: Generate Keys using the Direct ( Rest ) API integration option. ( Check the below screenshot )

Related support article: How Do I Get My Client ID And Client Secret?

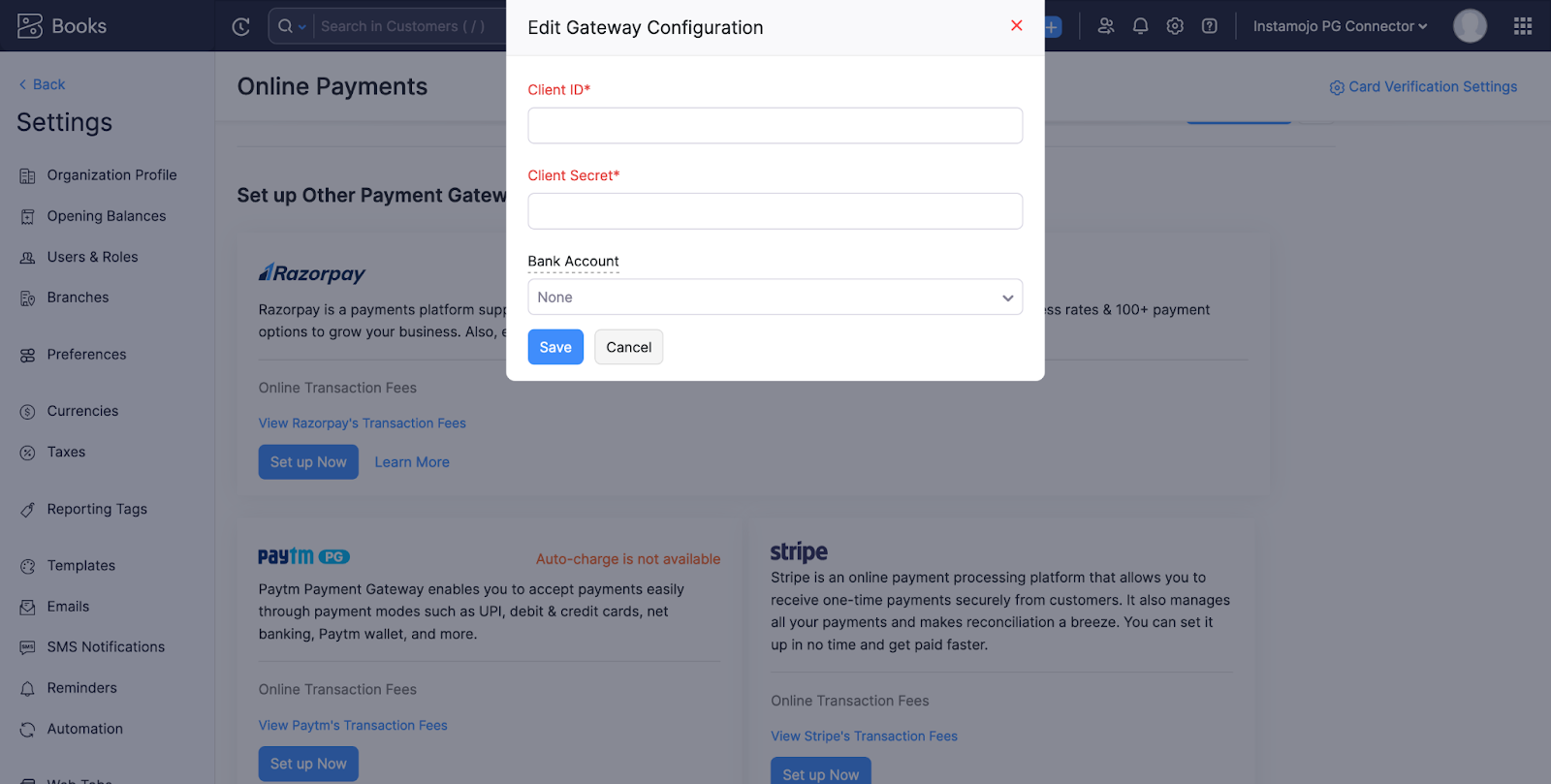

After putting in the client id & secret key, click on the save button to complete the setup.

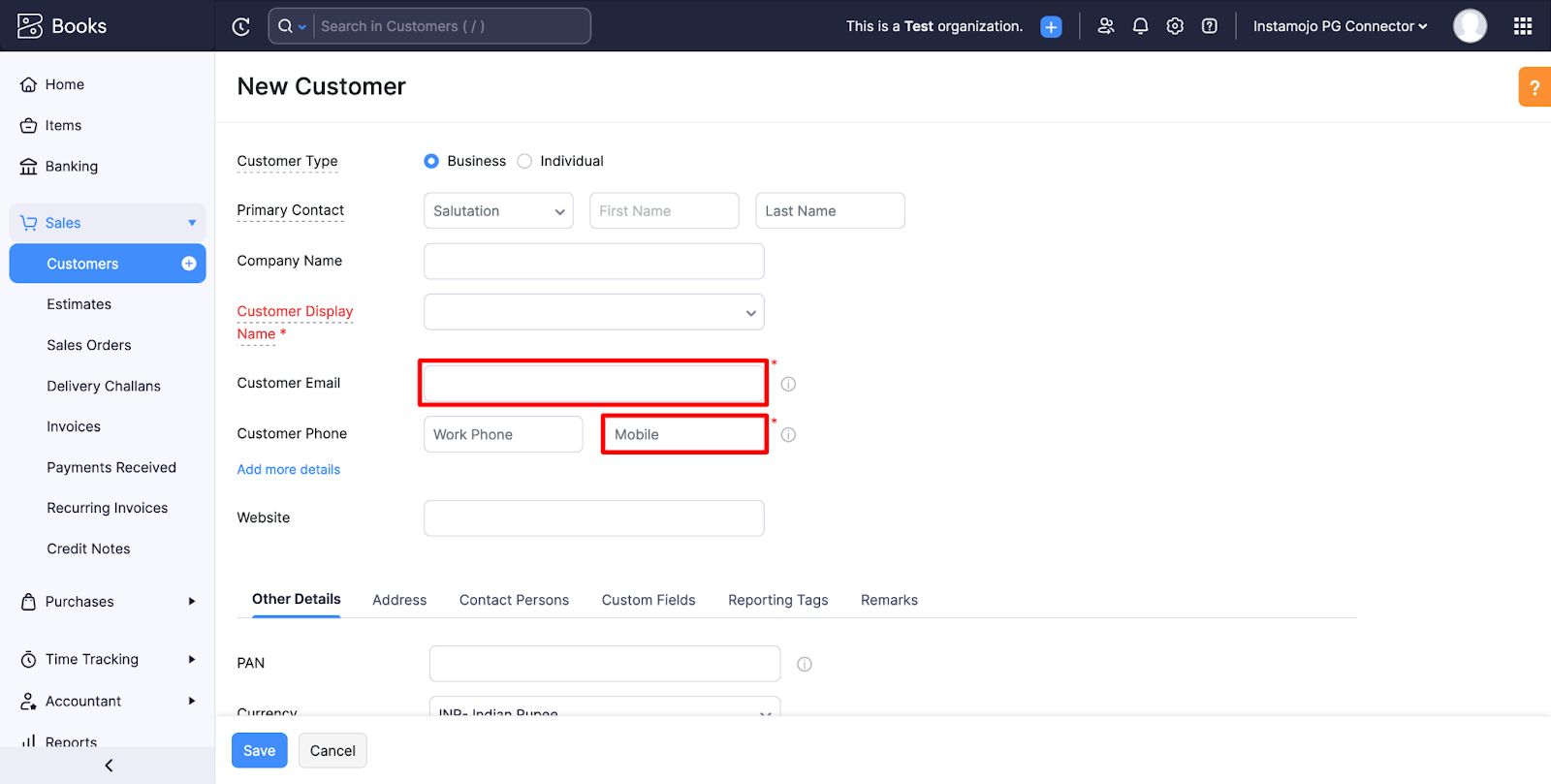

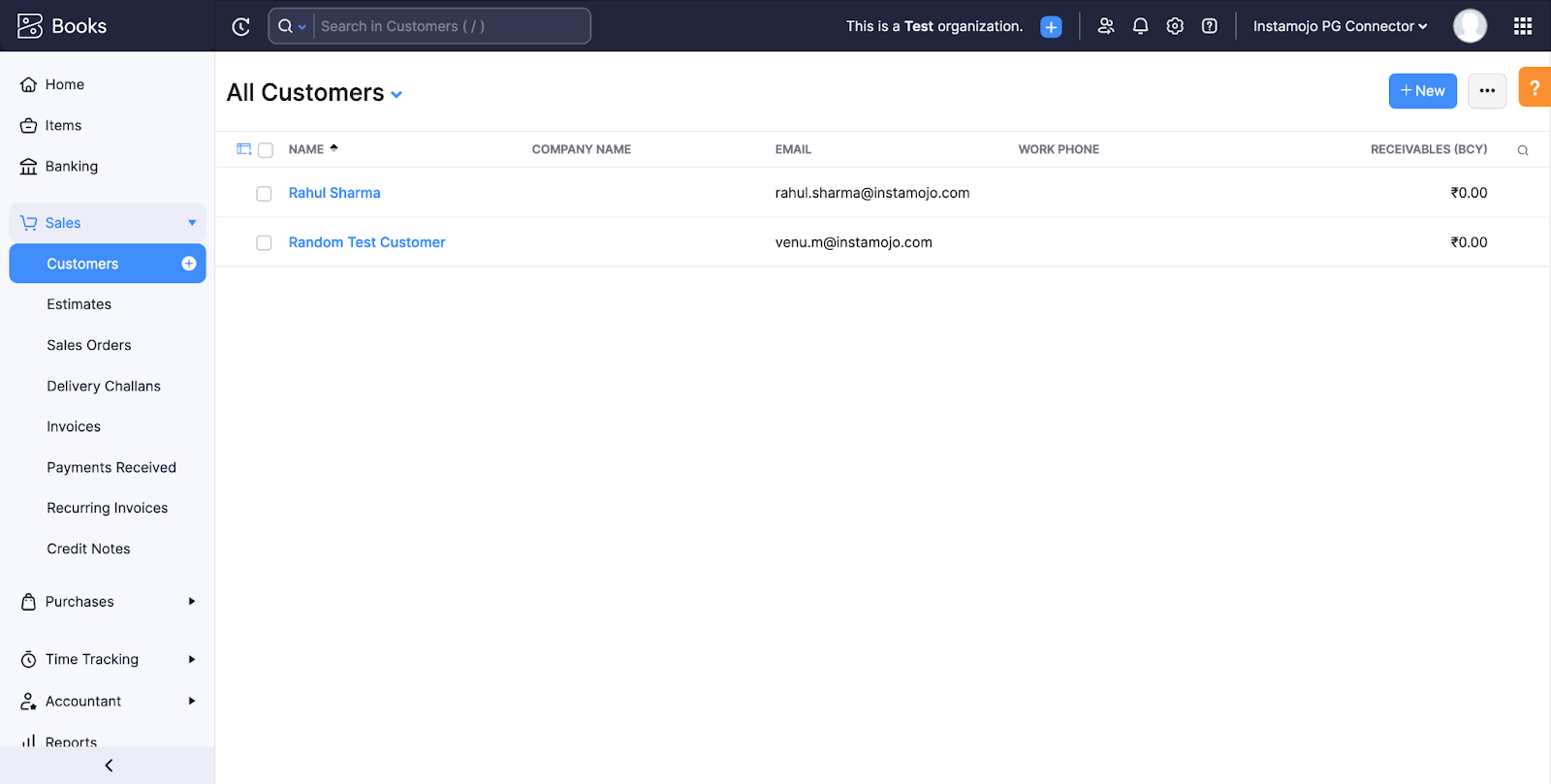

Note: Customer First Name, Last Name, Email & Phone number are mandatory for collecting payment so make sure before creating an invoice.

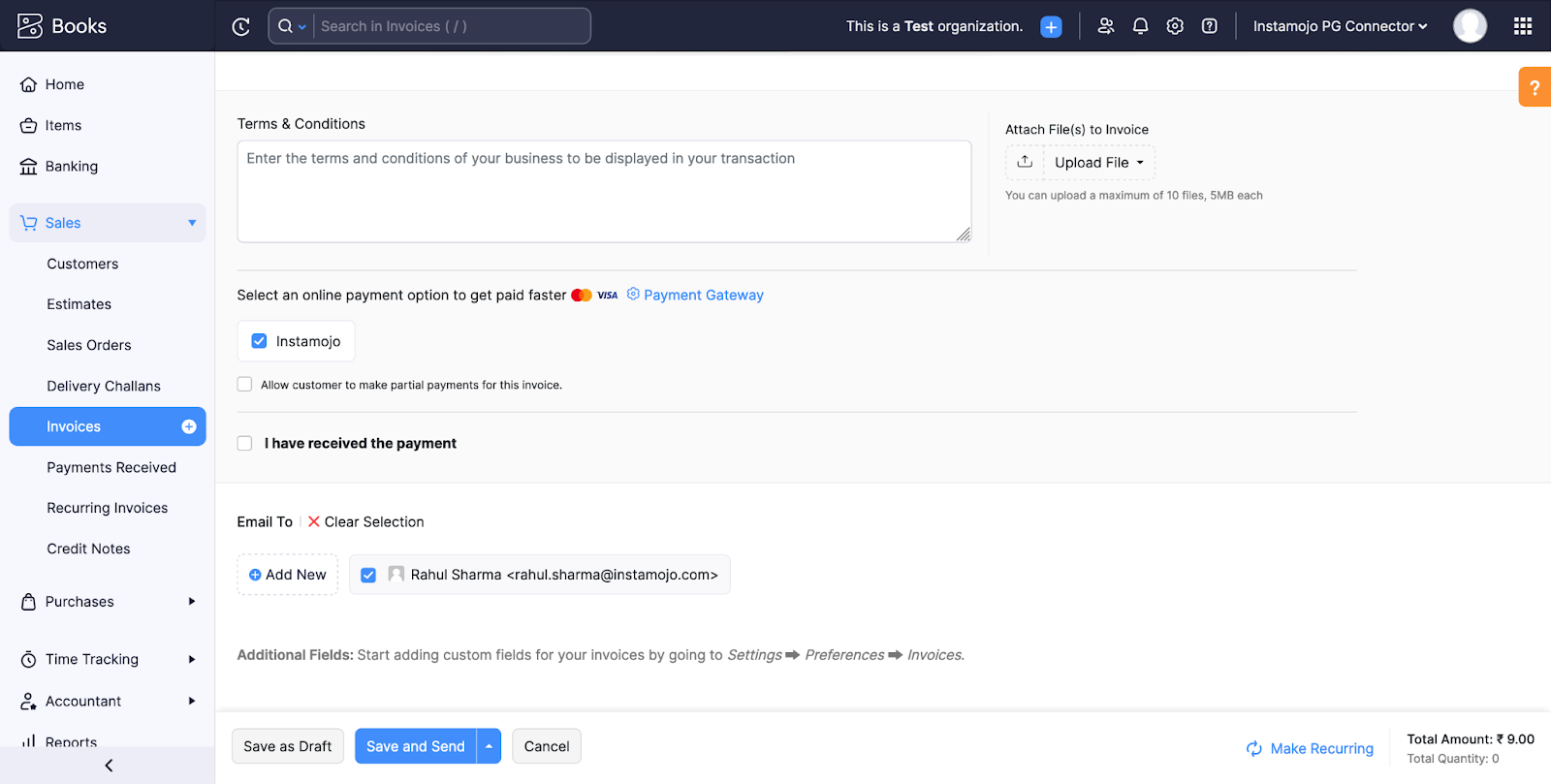

Step 7: Create an Invoice and select Instamojo as the payment option.

Note: The amount will require a minimum of 9 for collecting payment in Instamojo.

Make sure the Instamojo checkbox is checked for the online payment option in the invoice.

Step 8: Send the invoice to the customer.

Customer interface for making payment:

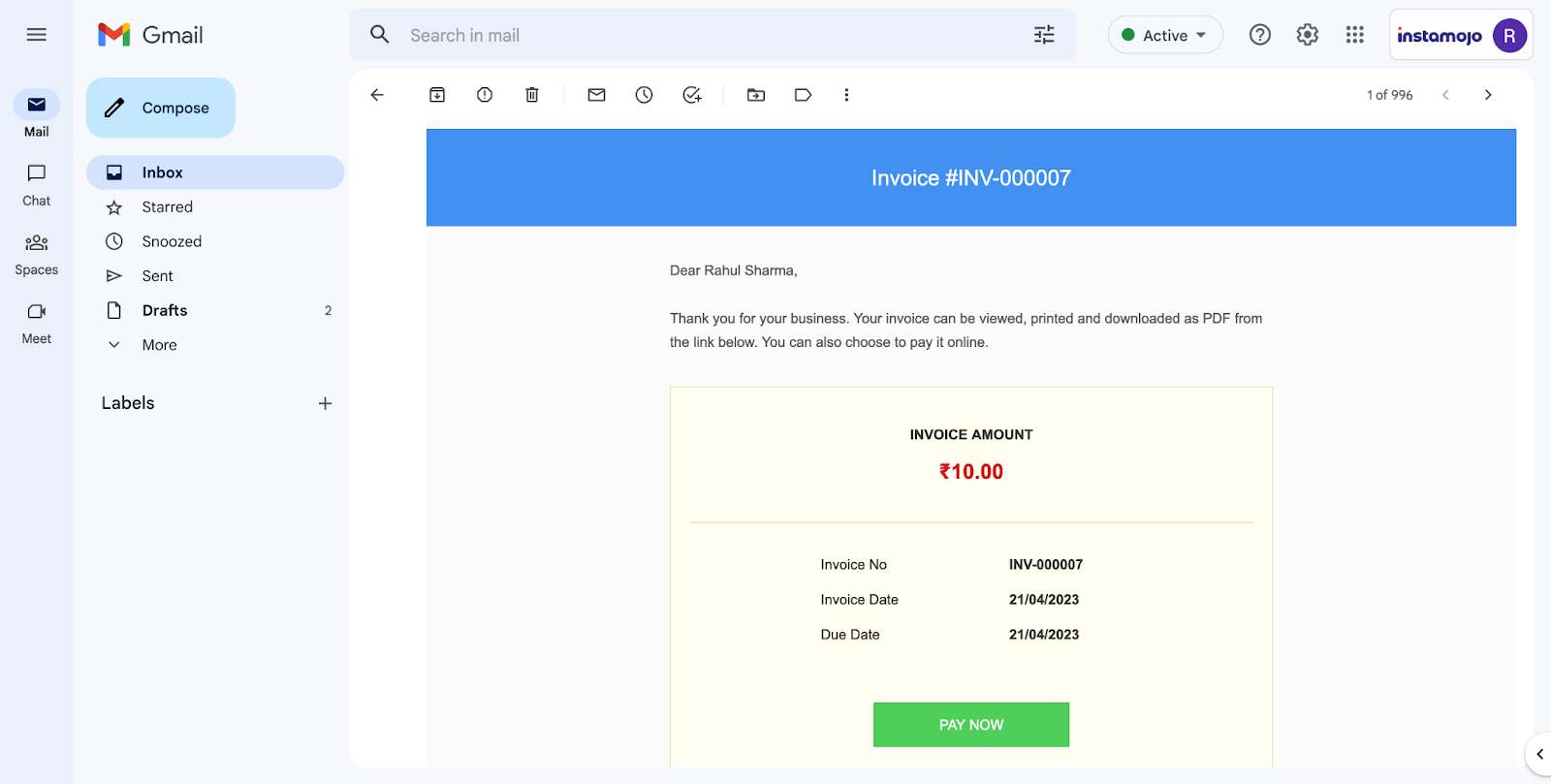

Customers will receive the invoice in their email for making payment as below. ( Check the below screenshot )

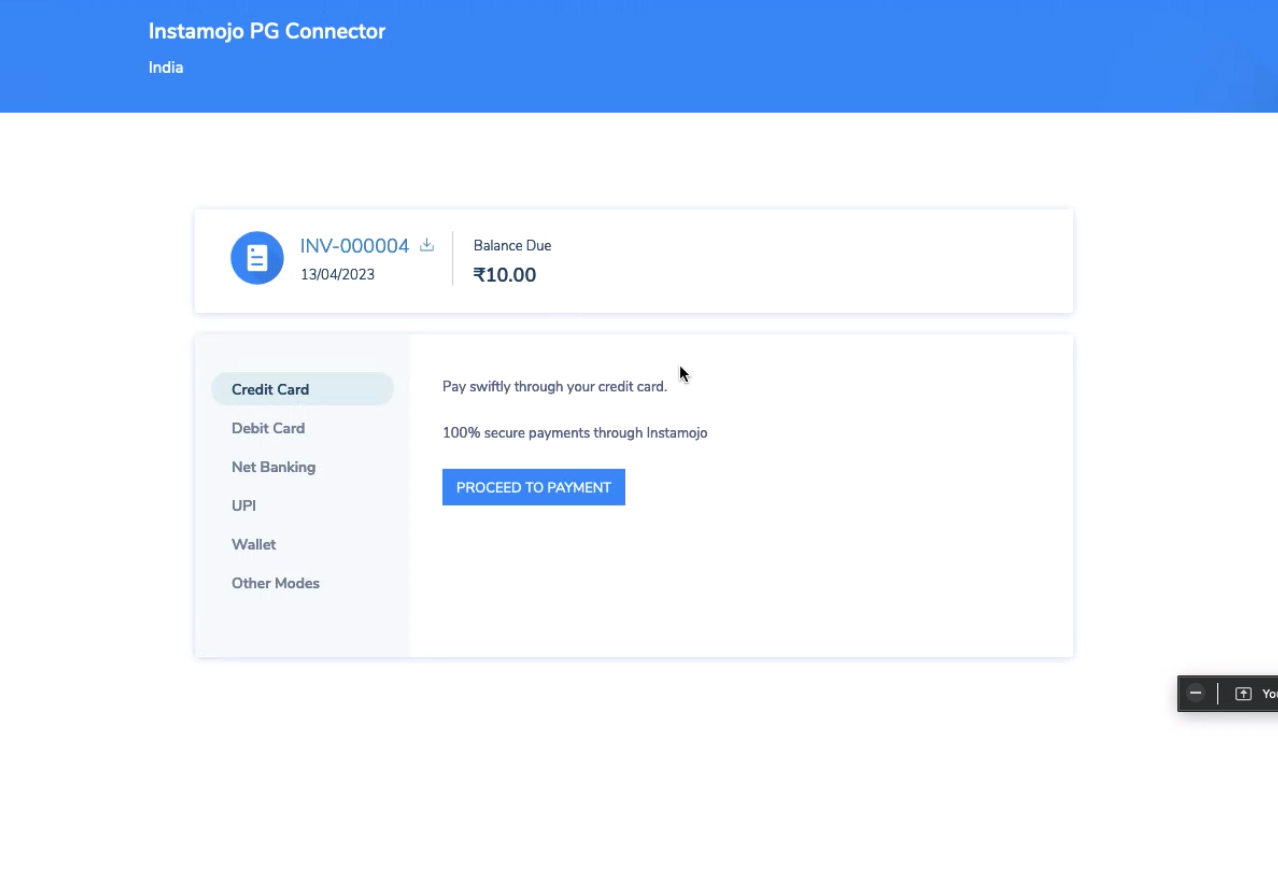

After Clicking on Pay Now button on the email below screen will open for making a payment.

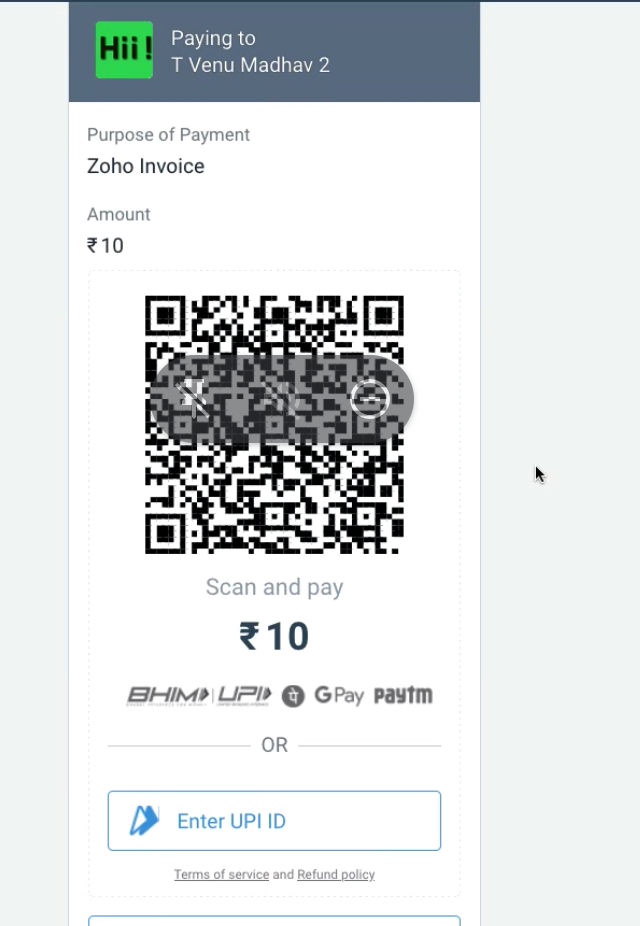

After clicking on Proceed to Payment the customer will see the below screen for making Payment.

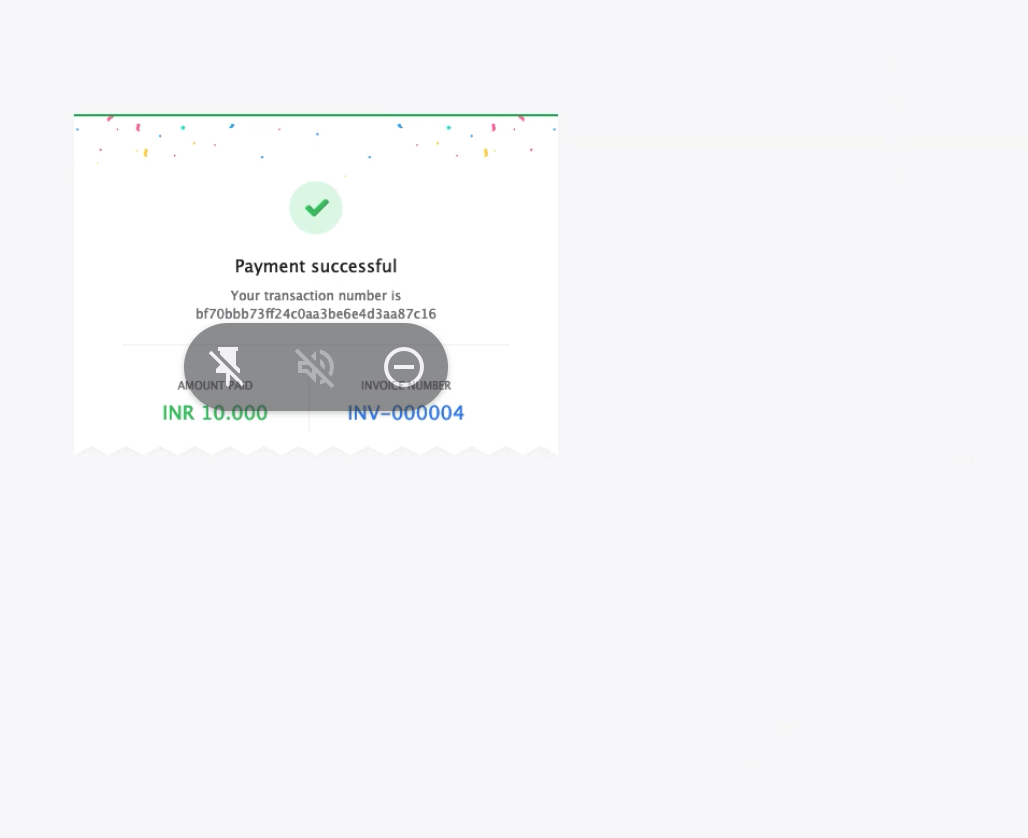

After successful payment customer will be redirected to the following screen.

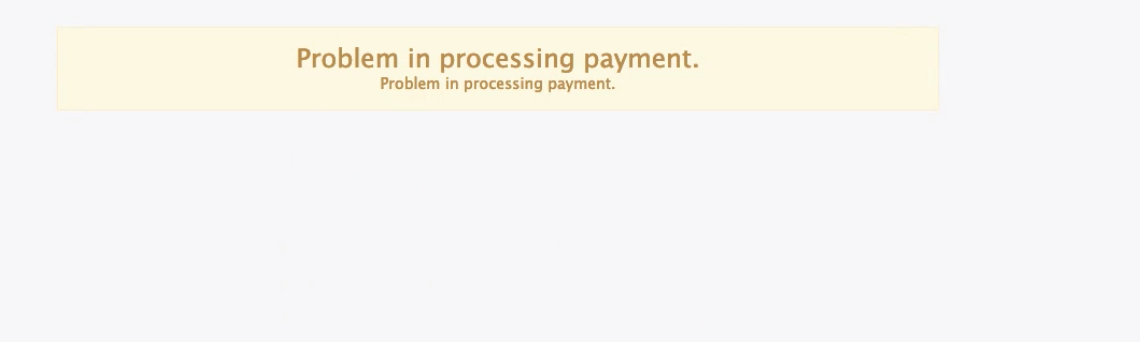

If there is a failed payment then the customer will see the following screen.

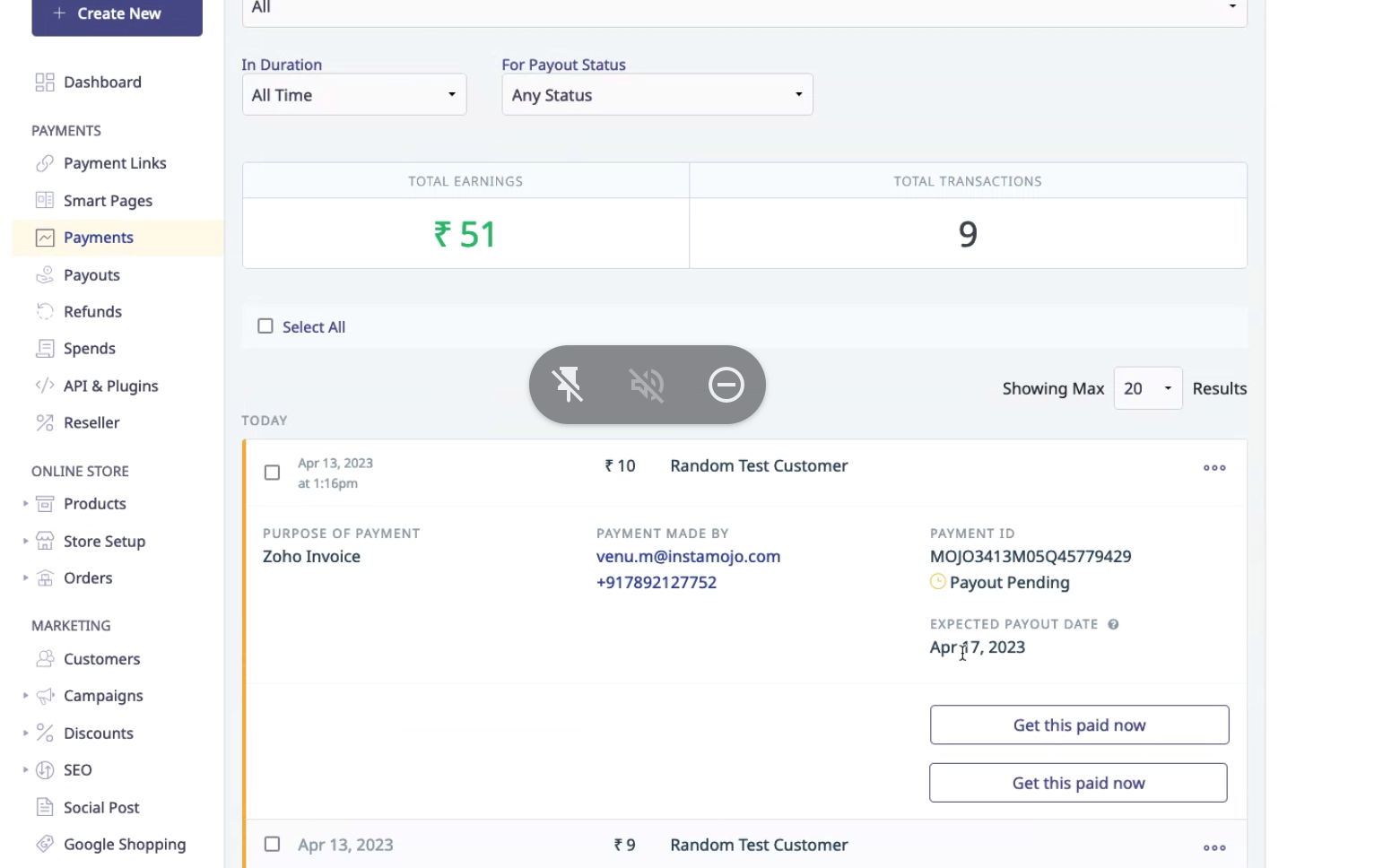

For successful payment, customers can see payment on Instamojo Dashboard.
